QUICK ANSWERMeasure three things before buying garage cabinets: your wall runs (the usable space between obstacles like doors, windows, and the water heater), your ceiling height at its lowest point, and the clearances you need for both the cabinet doors to open fully and your car doors and walkways to work. As a rule, leave enough room in front of cabinets for their doors to swing completely open plus space to stand, and confirm cabinet depth won't intrude on where car doors open or people walk. |
Why measuring is the step people skip and regret
Poor measuring is one of the leading causes of returns and disappointment in garage storage, and it's entirely avoidable. The failure pattern is familiar: someone orders cabinets based on wall length alone, then discovers the doors hit the car, the run doesn't fit between the window and the corner, or a tall unit won't stand up under a low garage door track. A tape measure and twenty minutes up front prevent all of it.
The goal of measuring isn't just making sure cabinets fit against the wall; it's making sure the whole space still works once they're there: doors that open fully, a car that still parks, and walkways you can actually use. Here's how to do it properly.
Start with what you'll store
Before the tape measure comes out, make a quick list of what's going in the cabinets. It sounds unrelated to measuring, but it drives every dimension that follows: bulky power tools and bins need deeper cabinets; long-handled tools need tall units; a workbench zone needs counter height base cabinets and clearance to work.
Knowing your contents keeps you from the two classic mistakes: buying cabinets too shallow to hold what you own, or buying more cabinets than your space and gear actually justify. Once you know roughly what needs to live where, the measurements have a purpose.
Measure your wall runs
A 'wall run' is a usable stretch of wall between obstacles. You're not measuring the whole wall as one number; you're measuring the segments where cabinets can actually go.
Start in a corner and measure to the first obstacle: a door, window, step, water heater, electrical panel, or the garage-door track. Record that as Wall Run 1. Continue from that obstacle to the next, logging Wall Run 2, Wall Run 3, and so on around the space. Note the obstacles themselves too, because they affect what fits where. This gives you a realistic map of your available space instead of one misleading wall-length figure.
Measure your ceiling height at the lowest point
Measure from the floor to the ceiling, and specifically measure at the lowest point along each wall, not the highest. Garages often have obstructions that eat vertical space: the garage-door track and opener, low ductwork, pipes, lighting, or a sloped ceiling. A tall cabinet or gear locker has to clear the lowest obstruction along its intended wall, not the average height.
This measurement determines whether tall units fit and how high wall-mounted cabinets can be installed. Getting it wrong is how people end up with a locker that won't stand upright under the door track.
The clearances that actually matter
This is where most measuring mistakes happen, because it's about the space cabinets need around them, not just the space they occupy. Three clearances matter most:
- Cabinet door swing. A cabinet door needs room to open fully. Leave enough space in front of the cabinet for the door to swing completely open, plus room for you to stand and reach inside. Cabinets crammed into a spot where the doors can't fully open are a daily frustration.
- Car door and walkway clearance. This is the big one in a garage. Cabinet depth must not intrude into the arc where your car doors open, or into the walkways you use to get around the vehicle. Measure where your car actually sits and where its doors swing, then confirm the cabinet depth leaves that space clear.
- Garage-door track clearance. Make sure tall cabinets and anything wall-mounted up high clear the garage-door track and the opener's travel - both the fixed track and the path the door takes as it rolls up.

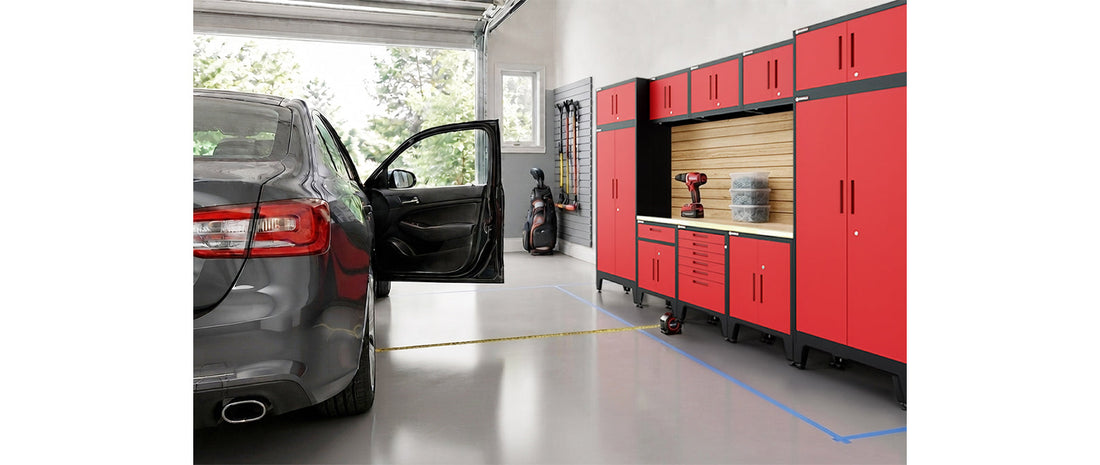

A simple practice: before finalizing, tape out the cabinet footprint and depth on the floor, then open your car doors and walk the space. If everything still works with the tape in place, the real cabinets will too.
A quick measuring checklist
- List what you're storing so cabinet depth and height match your gear.
- Measure each wall run between obstacles, not the whole wall as one figure.
- Note every obstacle: doors, windows, water heater, panel, door track.
- Measure ceiling height at the lowest point along each wall.
- Confirm door-swing clearance in front of every cabinet.
- Confirm cabinet depth clears car doors and walkways.
Let the planning tool do the math
If juggling wall runs, clearances, and cabinet dimensions sounds like a lot to hold in your head, it doesn't have to be. Armadillo Tough's free Design team takes your photos and measurements of your garage and returns a custom layout that fits your walls, your gear, and your clearances, testing cabinet, shelving, and workbench combinations against your actual space before you buy. It turns the measuring work into a plan you can see, and it's the fastest way to avoid the fit-and-clearance mistakes that cause returns.
Armadillo cabinets are also modular and offer garage-friendly depths, so doors open fully without hitting the car, and adjustable shelves let you adapt the interior to what you're actually storing.
Frequently asked questions
How much clearance do I need in front of garage cabinets?
Enough for the cabinet doors to open fully, plus room to stand and reach inside. Just as important, confirm the cabinet depth doesn't intrude on where your car doors open or where you walk around the vehicle; that's the clearance people most often overlook.
How deep are garage cabinets, and does depth matter?
Depth matters a lot in a garage because it directly affects car-door and walkway clearance. Deeper cabinets hold bulkier gear but eat more floor space; garage-friendly depths are designed so doors open fully without hitting a parked car. Match depth to both your contents and your clearances.
How do I measure ceiling height for tall garage cabinets?
Measure from the floor to the ceiling at the lowest point along the wall, accounting for the garage-door track, ductwork, pipes, and lighting. Tall units and gear lockers must clear the lowest obstruction, not the average ceiling height.
What's the easiest way to plan a garage cabinet layout?
Submit your measurements and photos. Armadillo Tough's free Design team returns a custom layout that fits your wall runs, clearances, and gear, so you can see the plan and avoid fit mistakes before ordering.
