QUICK ANSWERNearly every garage floor is sloped on purpose, typically about a quarter-inch per foot toward the door for drainage, so a run of cabinets will never sit level on the slab as is. The fix is to work from the highest point on the floor, set that cabinet first, and use the cabinet's leveling feet (with shims for larger gaps) to bring every other cabinet up to the same level line. A slope under roughly an inch across the cabinet run is normal and easily corrected; much more than that can signal a bigger floor issue worth inspecting. |
Why your garage floor slopes (and why that's normal)
If you've set a level on your garage floor and been alarmed, relax: garage slabs are poured with a deliberate slope, almost always toward the main door. It's there so water from rain, snowmelt off the car, or washing something down drains out instead of pooling inside. The building standard pitch is roughly a quarter inch of drop per foot of run, though older or settled slabs can vary.
That's great for drainage and a headache for cabinets. Set a six- or eight-foot run of cabinets on a sloped slab and one end will sit noticeably lower than the other, the doors won't line up, and the tops won't form a straight line. This is one of the most repeated questions in garage and DIY communities, and the good news is that it's a routine, solvable problem, not a reason to rethink your whole install.
First, measure how much slope you're dealing with
Before you move any cabinets, find out how much drop you're correcting for. Lay a long, straight board along the wall where the cabinets will go, the full length of the planned run. Rest a level on top, lift the low end until the bubble centers, and measure the gap between the raised end of the board and the floor. That gap is your total slope across the run.
Some quick context on what you'll find. A drop of up to about an inch across a typical cabinet run is normal and well within what leveling feet and shims handle. If you're seeing two inches or more over eight feet, a real figure people report in the forums, it's still workable, but you'll lean more on shims and should double-check that the slab isn't cracked or heaving, which is a separate structural question worth a closer look.
The step-by-step method for leveling a cabinet run

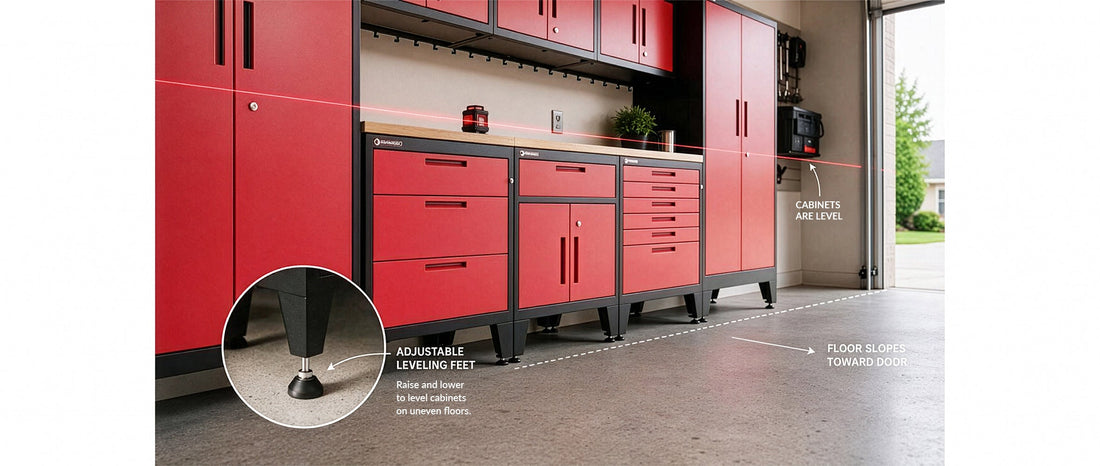

The core principle: you can raise a cabinet to meet a level line, but you can't lower it into the slab. So you always establish your level line at the highest point of the floor and bring everything else up to it.
1. Find the high point. Along your cabinet run, identify where the floor sits highest in most garages; that's the wall side, farthest from the door. This is your reference.
2. Set the high-point cabinet first. Place the cabinet at that high spot and adjust its leveling feet so it's level in both directions (front to back and side to side). This cabinet establishes the height every other cabinet will match.
3. Mark a level line. Using a long level or a laser, extend a level line along the wall from the top of that first cabinet. This is the line all the cabinet tops will meet.
4. Work downhill, raising each cabinet to the line. Move to the next cabinet along the run. Because the floor drops away, its feet will need to extend further to bring its top up to your level line. Adjust the leveling feet until it matches.
5. Use shims for gaps beyond the feet's range. If the drop is large enough that the leveling feet run out of travel, add shims under the feet to make up the difference. Stack and trim shims so the foot sits solid and flat, not perched on an edge.
6. Fasten cabinets together, then to the wall (only for permanent installation). Once the run is level and aligned, join adjacent cabinets so they act as one rigid unit, then anchor the run to the wall studs. Anchoring is essential for tall or loaded cabinets regardless of slope.
7. Hide the gap if you want a finished look. On a sloped floor a level cabinet run leaves a wedge-shaped gap under the low end. A simple toe-kick board or trim piece, scribed to the floor, closes it off cleanly and keeps pests out from underneath.
Why leveling feet beat improvised fixes
Forum threads are full of homemade approaches: building a sloped platform, mounting everything to the wall to float above the floor, or wedging scrap wood under one end. They can work, but they add labor and failure points. Built-in leveling feet are the reason this job is usually a 20-minute adjustment rather than a weekend carpentry project.
Every Armadillo Tough cabinet comes with leveling feet standard, so correcting for a sloped slab is part of the normal setup rather than an aftermarket scramble. Combined with the cabinets' welded internal frame, which keeps each unit square while you adjust it, you can dial in a level, aligned run without fighting a box that flexes as you shim it. For mobility, instead the cabinets also accept multi-directional steel wheels, though for a permanent sloped floor install, leveling feet are the way to go.
When slope means something more serious
Standard drainage slope is uniform and gentle. What's worth a second look is an irregular slope, a floor that dips in the middle, humps up, or has cracks with one side sitting higher than the other. Those can indicate slab settlement or heaving, and while you can still level cabinets over them, it's smart to understand what the slab is doing before you build a heavy, permanent storage wall on top of it. If in doubt, a quick look from a foundation or concrete pro is cheap insurance.
Frequently asked questions
How much slope is normal for a garage floor?
About a quarter-inch of drop per foot toward the door is the building standard, put there for drainage. Across a typical cabinet run that usually adds up to under an inch of total slope, which leveling feet and shims handle easily.
Do I need shims if my cabinets have leveling feet?
Often the leveling feet alone are enough. Shims come into play only when the floor drops more than the feet can travel , common on longer runs or steeper slopes. In that case, add trimmed shims under the feet to make up the extra height.
Should I level cabinets to the high point or the low point of the floor?
Always to the high point. You can raise a cabinet with its feet and shims, but you can't sink it into the slab, so you set your level line at the highest spot and bring every other cabinet up to meet it.
Do garage cabinets need to be anchored to the wall on a sloped floor?
Depends — anchoring to wall studs is helpful for any tall or loaded cabinet regardless of slope, and on a sloped floor it also helps hold the leveled run rigidly in place. Fasten the cabinets together first, then anchor the run to the wall.
